VHM Flat Top Billet Piston kit 125SX
$270.49
Pickup currently unavailable
Fits 2023'+ KTM, Husqvarna, and 24' GasGas 125 OEM head insert & VHM flat top insert (non-12*)

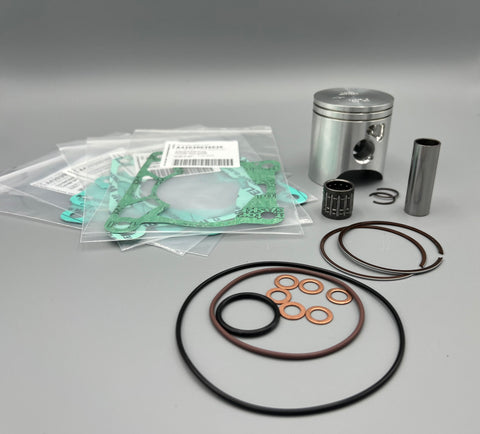

Our kit is a "drop in" kit, with everything you need to rebuild the top end and comes with a piston, (2x) rings, wrist pin, c-clips, pin bearing, and OEM gasket set.
We stock (2) sizes for the 125, 53.94mm and 53.95mm.
If you want the best piston possible to install in your bike, look no further than the VHM Billet Series, offered here in flat top OEM type.
The Flat Top series (or FT), are pistons that are manufactured from hammer forged aluminum, then machined out of a solid billet block of billet aluminum, and into their final dimension. They are the strongest piston made, detonation resilient, and proven to last longer than weaker cast pistons and forged series.
They are also elliptically machined on the exhaust port side, (hottest side of the piston), to account for heat and expansion, meaning it is intentionally made slightly oval, but when heated up to temp, holds a true roundness to the bore dimension resulting in superior performance and power.
The VHM flat top series can be used as a stock replacement and used with the stock heads.
See the VHM 12 deg menu for ordering the 12 degree series.
